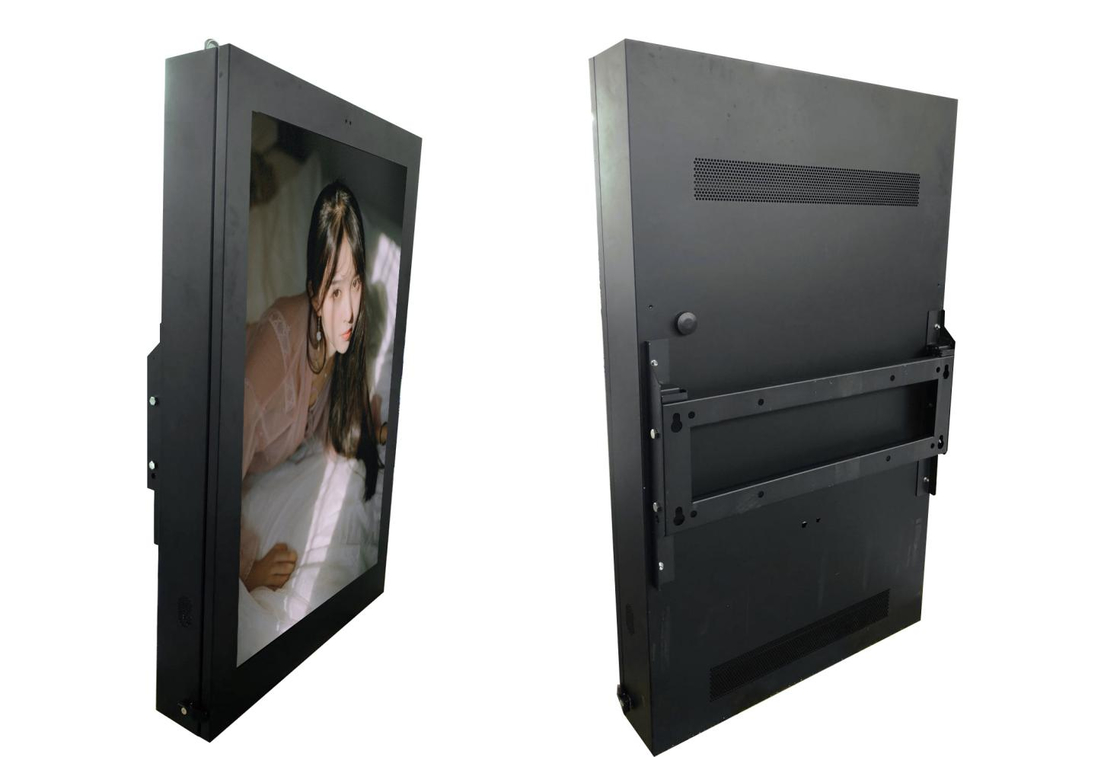

55 Inch Wall Touch Screen Kiosk Outdoor 2000 3500 Nits Android System With Light Temperature Sensor Dustproof Waterproof for Commercial Displays
تفاصيل المنتج:
| مكان المنشأ: | الصين |
| اسم العلامة التجارية: | iBoard |
| إصدار الشهادات: | CE |
| رقم الموديل: | تي-DP-55 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 مجموعة |
|---|---|
| الأسعار: | USD1800-2000/PC |
| تفاصيل التغليف: | حزمة الكرتون ، اختياري مع صندوق أو صندوق خشبي |
| وقت التسليم: | 20-25 أيام عمل |
| شروط الدفع: | الاعتماد المستندي، تي/تي |
| القدرة على العرض: | 1000pcs في الشهر |
|
معلومات تفصيلية |
|||
| طلب: | في الهواء الطلق | مقاس: | 55 بوصة |
|---|---|---|---|
| نظام التشغيل: | Android | سطوع: | 2000/3500 شمعة اختيارية |
| إبراز: | 55 inch outdoor touch screen kiosk,waterproof commercial display kiosk,high brightness Android kiosk,waterproof commercial display kiosk,high brightness Android kiosk |
||
منتوج وصف
55 Inch Wall Touch Screen Kiosk Outdoor 2000 3500 Nits Android System With Light Temperature Sensor Dustproof Waterproof for Commercial Displays
Features:
1.1 A 55-inch high-brightness LCD screen is required.
1.2 Brightness requirement: 3500 cd/m², automatic ambient light sensing, and tempered explosion-proof glass.
1.3 The entire device utilizes a high-quality cooling fan, lightning protection, overload protection, overvoltage protection, overcurrent protection, and overtemperature protection, and is designed to be rainproof, dustproof, and sunproof.
1.4 Required functions: An Android motherboard, Wi-Fi support, an RJ45 port, support for simultaneous control of all devices or a single device, and support for full HD 1920x1080 decoding.
2. Advantages:
Stylish Appearance: Standard housings are available, and elegant, stylish housings can be custom-designed to meet your needs. A variety of styles offer exceptional quality.
Timed Backlight: Supports 10 time-zoned backlighting settings for easy operation.
Intelligent Temperature Control: An intelligent temperature control system maintains a constant, dry internal temperature, preventing fogging and condensation.
Dustproof and Waterproof: The fully sealed design prevents dust and water from entering, meeting IP55 standards.
Sunproof and Explosion-Proof: The housing is constructed of galvanized steel, treated with a specialized outdoor powder coating, waterproof, sun-resistant, corrosion-resistant, and explosion-proof finish. It withstands up to 10 years of outdoor use without fading.
Specification sheet
| Components | Item | Detail |
| Sheet metal housing | Material | made of 1.5mm SGCC galvanized steel plate |
| Shell coating | The inner layer is sprayed with zinc-rich primer, and the surface is sprayed with Aksu outdoor plastic powder for protection. | |
| Lifetime | >10 years | |
| IP Level | IP55 | |
| Explosion-proof glass | Performance parameters | 6mm 5T tempered glass, when damaged by external forces, shatters into small, blunt-angled, honeycomb-like particles, less likely to cause serious harm to the human body. Tempered glass has an impact strength 3-5 times that of ordinary glass and a bending strength 3-5 times that of ordinary glass. |
| Outdoor-specific high-brightness LCD screen | Brightness | 3500nits |
| Resolution | 1920*1080 | |
| Pixel distance | 0.63 x 0.63 | |
| Viewing angle | 178/178 | |
| Backlight | LED direct backlight, visible in sunlight; automatic photosensitive probe, adjusts screen brightness according to ambient light, saves energy and reduces light pollution. Wide temperature LCD panel, working temperature can reach -40-+85°C working environment | |
| Operation system | Android | Android 3566 chipset,Quad Cores Processor, 2+32GB. Android 11 |
| Electronic control system | Leakage protection | Leakage protection switch, leakage protection, overcurrent and overvoltage protection. |
| Timed power supply | Microcomputer timer switch, time-controlled start and stop of the machine. | |
| Lightning protection level | Lightning arrester, lightning protection level C, to prevent instantaneous induced lightning strikes. | |
| Power supply brand | Industry level | |
| Cooling system | Temperature control | The intelligent fan has integrated temperature control to ensure that the display does not blacken and the entire machine works normally in an outdoor environment of -40-+85 degrees. |
| Fan type | It uses imported axial flow fans, equipped with fan speed control panels, automatic temperature sensing, automatic adjustment of fan speed, energy saving and electricity saving, and extending fan service life. | |
| Working Environment | Temperature | -40℃ to 85℃ |
| Humidity | 5% to 90% | |
| Working Voltage | 220V | |
| Power | 400W |
Data:
| Components | Data | |
| Display | Size | 55 inch |
| Display area | 1210X680mm | |
| Display ratio | 16:9 | |
| Resolution | 1920x1080 | |
| Brightness | 3500cd/㎡ | |
| Contrast ratio | 5000:1 | |
| Dynamic Contrast | 100,000:1 | |
| Viewing angle | 178°H/178°V | |
| Color range | 72% | |
| Hours of operations | 24/7 | |
| Android | CPU | RK3566 Quad Cores Processor |
| Memory | 2G DDR | |
| Storage | 32G Flash | |
| Connection | USB2.0*4 RJ45*2, HDMI*2 | |
| Response time | 8ms | |
| Android version | Android 11 | |
| Power supply | AC100-240V 50/60Hz | |
| Driver board | Reserved interface | HDMI,VGA |
| Function | Remote control switching signal can be realized | |
| Cover | IP level | IP55 |
| Weight | 116KG | |
| Installation | Wall mounted | |
| Glass | 6mm tempered glass | |
| Dimension | L1530XW300XH1090(BOX) | L1520XW320XH1100(Shell) |
| G.W.(KGS) | 136KG | |
Dimension
