iBoard Google EDLA Certified 75 Inch Interactive Displays Flat Panel Smart Boards
تفاصيل المنتج:
| مكان المنشأ: | شنتشن ، الصين |
| اسم العلامة التجارية: | iBoard |
| إصدار الشهادات: | CE, FCC, RoHS, Reach, CCC, OHSAS, ISO9001, ISO14001 |
| رقم الموديل: | الـ TE-YL-75 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 2 قطعة |
|---|---|
| الأسعار: | TBD |
| تفاصيل التغليف: | حزمة الكرتون ، حالة خشبية أو قفص خشبي اختياري |
| وقت التسليم: | 20-30 يوما |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | 10000 وحدة في الشهر |
|
معلومات تفصيلية |
|||
| حجم الشاشة: | 75 بوصة | نقاط اللمس: | 20 نقطة لنظام Android، و40 نقطة اتصال لنظام Windows |
|---|---|---|---|
| لون: | أسود، رمادي، فضي أبيض (اختياري) | تطبيق: | التدريس التربوي، الاجتماع، التدريب، المنزل |
| نظام التشغيل: | بنيت في أندرويد، ويندوز اختياري | سطوع: | 400-500 شمعة/م2 |
| واجهة: | يو اس بي، فيجا، RS232، اتش دي ام اي،... | مادة: | إطار سبيكة الألومنيوم |
| الشهادات: | معايير الموافقة، الـ ROHS، FCC... | راديو الجانب: | 16:9 |
| حجم الشاشة: | 75 بوصة | طريقة الشحن: | شحن بحري، شحن جوي، شحن بالشاحنات |
| ضمان: | 1 سنة | مزود الطاقة: | AC 100-240V ، 50/60 هرتز |
| نظام التشغيل: | Andriod/Windows/Linux/Mac.etc. | دقة: | 1 مم |
| حامل متنقل: | خياري | آلة تصوير: | اختياري مدمج في 48 ميجابكسل ، أو كاميرا خارجية |
| ميكروفون: | اختياري مدمج في 8 ميكروفون مصفوفة، أو طلب آخر | ||
منتوج وصف

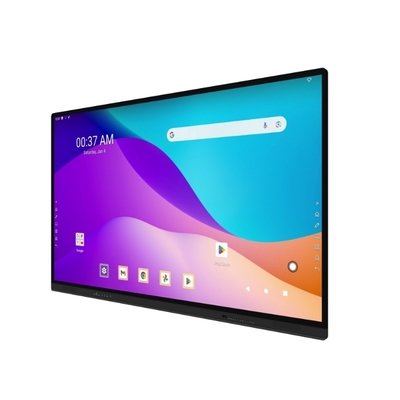

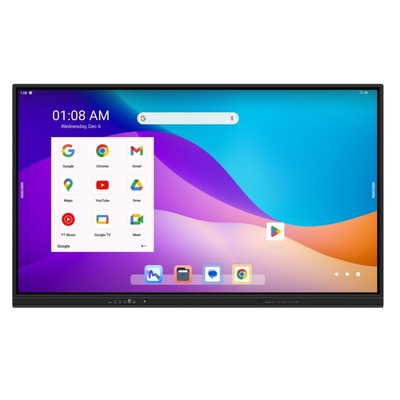

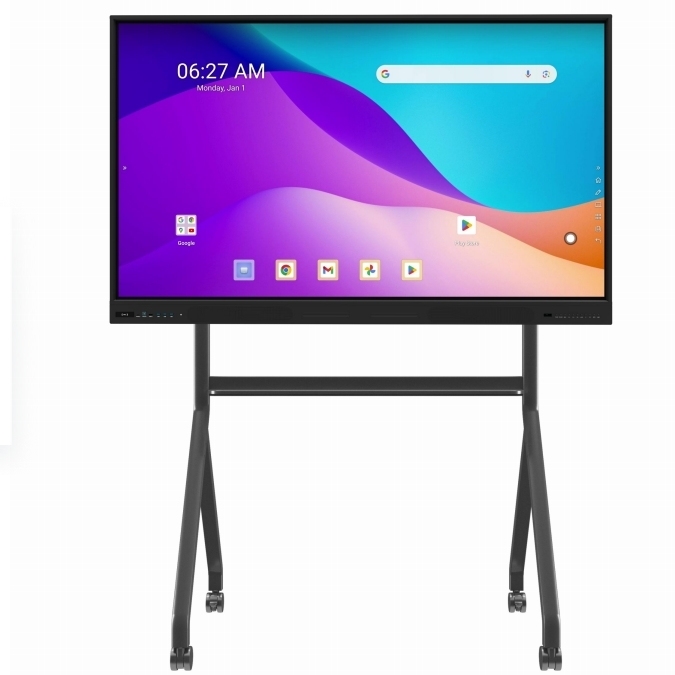

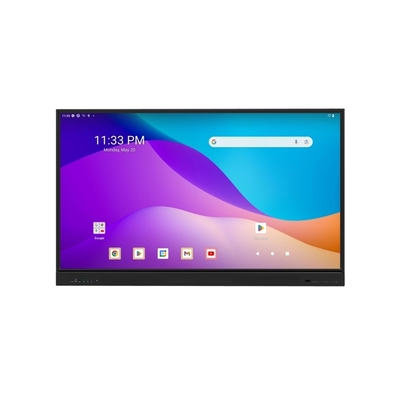

75 inch iBoard Google EDLA certified
Interactive Flat Panel Display
Description of 75 inch Interactive displays
iBoard Google EDLA certified Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in latest Android ( 8GB+128GB, 16GB+256GB optional), come with OPS slot for windows system. Camera& mic optional, different frame color, mobile stands and other relative products for option.
Google Enterprise Device Licensing Agreement (EDLA) certification ensures the IFPD has compatibility and optimal performance with Google applications and services, whether it is for education, busess, or entertainment. You can also use (Sheets, Slides, Meet, and more to boost your prouctivity and collaboration.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Easy for after-sales service;
Good quality control;
Firmware upgrades for lifetime.
Specifecation - iBoard YL series (EDLA version)
| Model | TE-YL-75 | |
| Dispaly Backlight | D-LED | |
| Resolution | True 4K UHD (3840 x 2160) @ 60Hz | |
| Brightness | 450 cd/㎡ | |
| Contrast | 1200:1 (Typical) | |
| Screen Size(mm) | 1649.7*927.9 mm | |
| Aspect Ratio | 16:9 | |
| View Angle | 178° | |
| Screen Mode | 16:9/4:3/dot to dot/full screen | |
| Color Depth | 10-bit (1.07 Billion colors) | |
| Panel Response Time | 8 ms | |
| DPI (Pixel Density) | 59 | |
| Working Life | 50,000 Hours | |
| AG Tempered Glass | 4mm, MoHS Level 7 hardness | |
|
Android Specification |
Android 13.0, EDLA certified | |
| CPU: A73*4+A53*4 @ 2.28GHz | ||
| GPU : G52*8 | ||
| WIFI6 Dual Band (2.4GHz & 5GHz)) & BT 2.1 + EDR / 4.2 / 5.0 | ||
| RAM : 8GB | ||
| ROM :128GB | ||
| Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz); | ||
| The file manager is supported, AI function support, built in whiteboard software. | ||
| AirPlay & TranScreen are supported, 9 screen share optional. | ||
| Local and online supportfor music player. | ||
|
Input Ports |
Rear: HDMI x2 (4K@60Hz), USB2.0x1,USB 3.0 x2, TOUCH USB x 2, TF card x1, RS232 x1, RJ45 x1, MIC x1, DP x1 (4K@60Hz), VGA/Audio x1, USB-C x1 (supports USB/touch/image/video 4K@60Hz/fast charge) |
|
| Front: 1 x HDMI2.0 , 1 x USB-C (support USB/touch/image/video 4K@60Hz/ fast charge) , 3 x USB 3.0 , 1 x USB-B (Touch) | ||
| Output Ports | HDMI OUT x1(4K@60Hz), Coxal x1, Headphonex 1 , RJ45 out x1 | |
| Front Button | 1X POWER(on/off) button, or 11 buttons | |
| Voltage | AC(100～240)V-50/60HZ | |
| Speakers | 2x 20W | |
| Power Range | Standby Power<1W | |
| Rated Power<350W | ||
|
Touch Parameter |
Touch Technology | Infared Touch |
| Touch Points | 20 touch points for Android, 40 for Windows | |
| Writing Mode | Finger or any opaque object | |
| Accuracy | <1mm | |
| Response Time | 5ms | |
| Cusor Speed | 180 dot/s | |
| Connection Port | USB 2.0, USB 3.0 | |
| Operating System | Windows/Linux/Mac/Android | |
| Working Temperature | 0℃-40℃ | |
| OPS computer | optional in i5/i7-12/13th, 8GB/16GB+256GB/512GB depends on request. | |
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB cable*1, Power Cable*1, Remoter*1, Wall mounting bracket | |
| Product sizes(mm) | 1707*1030*85 | |
|
Built in Camera ( optional) |
Optional built in 48MP camera, or AI camera as request | |
| Built in Array Microphone (optional) | 8 array microphones | |
| NFC function (optional) | for login in, device unlock... | |
| Weights (kg) | 52/64 | |
| Cartons (mm) | 1835x1173x165 | |
Remark: For more details of the specification , please contact our sales team osd019@touch-easy.com to know more detials.
All features and specifications are subject to change without notice.
